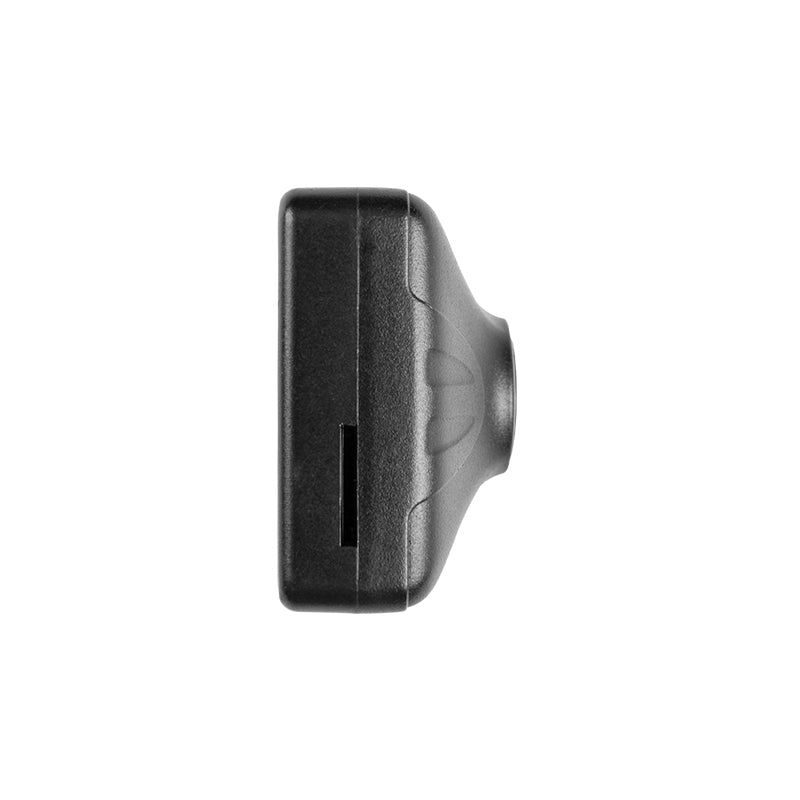

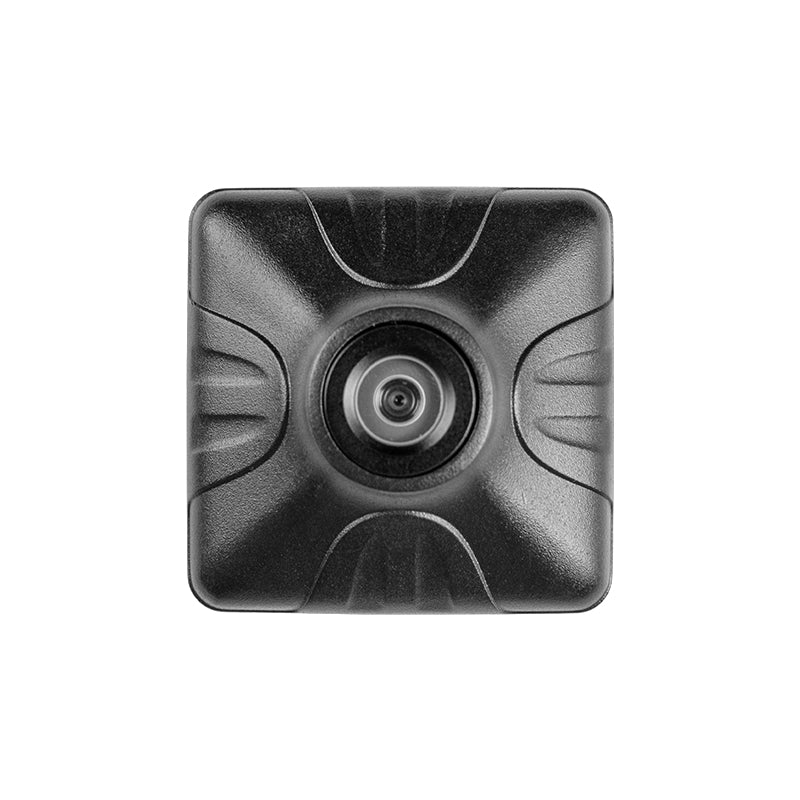

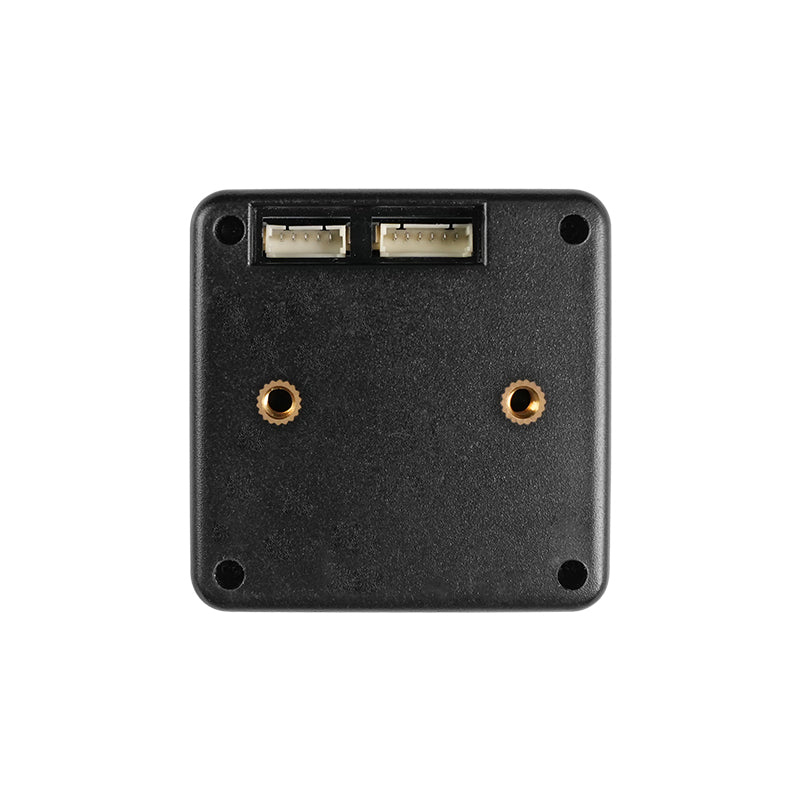

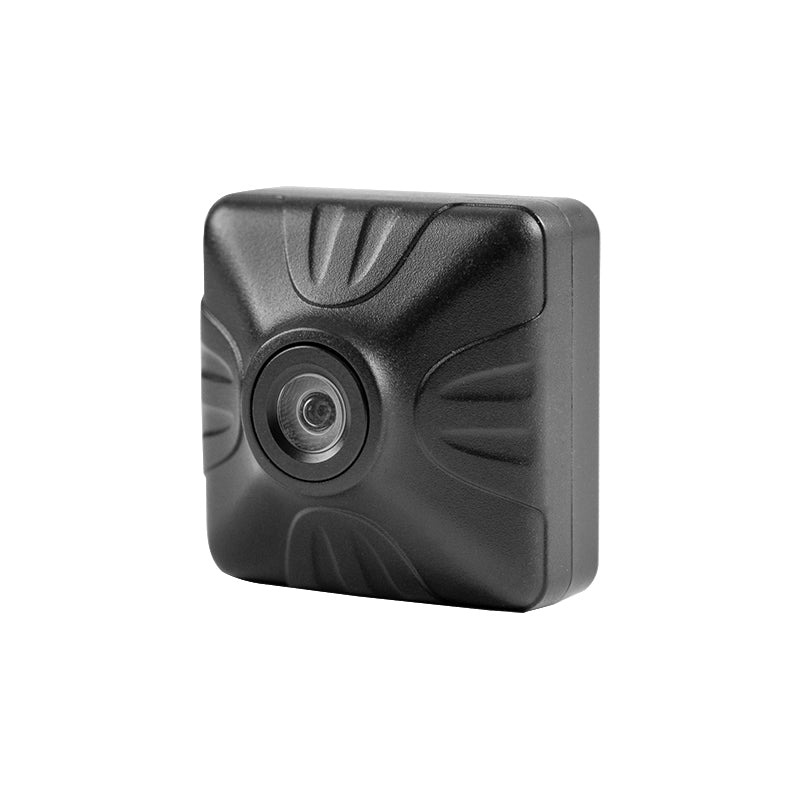

R1M Recording FPV Camera 1080p 30fps IP Camera with Ethernet Port Compatible with UniRC 10/7 MK32 HM30 MK15 Air Units
R1M Recording FPV Camera 1080p 30fps IP Camera with Ethernet Port Compatible with UniRC 10/7 MK32 HM30 MK15 Air Units

R1M Recording FPV Camera 1080p 30fps IP Camera with Ethernet Port Compatible with UniRC 10/7 MK32 HM30 MK15 Air Units
$40.57 USD
Technical Specifications

Overall
Video Output Port: Ethernet
Working Voltage: 12 V
Power Consumption: 3 W
Working Temperature: -10 to 50℃
Waterproof Level: IP4X
Dimension: 42 x 42 x 25 mm
Cable Length: 60 cm
Weight: 39 g

Camera
Image Sensor: 1/2.9”inch
FOV: Diagonal 90°, Horizontal 80°
TF Recording Resolution:
- 1080p (1920 x 1080) @ 30 fps
- 720p (1280 x 720) @ 30 fps
Video Storage Bitrate: 12 Mbps
File Storage Format: FAT32
Video Format: H.265
Supported MicroSD Cards: MicroSD Class10, Max 32GB


Downloads

Documents
R1_R1M_Recording_Camera_User_Manual

Firmware
R1M Recording Camera Firmware

Android App
FPV App
QGroundControl App

Windows Software
QGroundControl
PC Assistant
